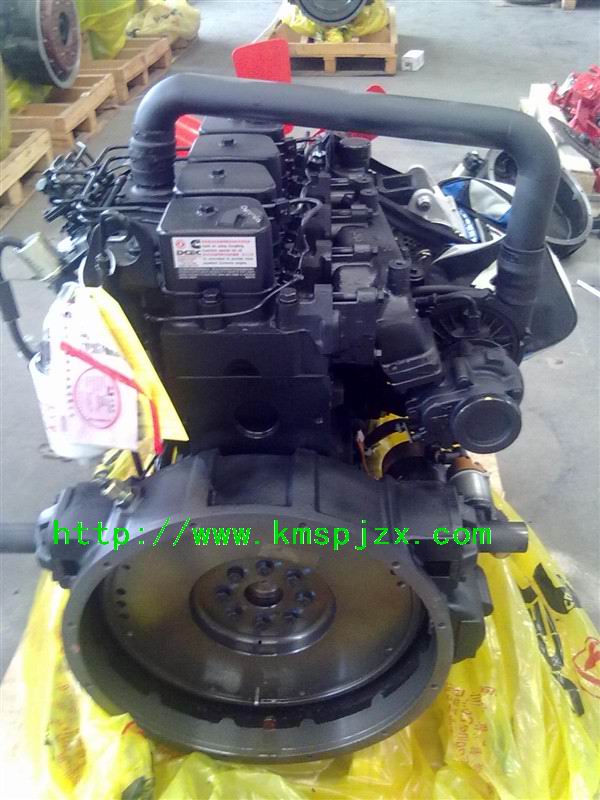

康明斯4BTA3.9-G2發動機：





50KW東風康明斯（DCEC CUMMINS）系列柴油發電機組技術規格參數

發電機組技術參數：

機組型號：RZ-50GF 穩態電壓調整率（%）：≤±1

輸出功率：50Kw 電壓波動率（%）：≤±0.5

功率因數：COSΦ=0.8（滯后） 瞬態電壓調整率（%）：＋20～－15

輸出電壓：400V/230V 電壓穩定時間：≤1

輸出電流：90A 穩態頻率調整率（%）：≤±1

額定頻率：50Hz 頻率波動率（%）：≤±0.5

額定轉速：1500rpm 瞬態頻率調整率（%）：＋10～－7

燃油牌號：（標準）0#輕柴油（常溫） 頻率穩定時間（S）：≤3

外形尺寸：1760×710×1400（L×W×H mm） 燃油消耗（100%負載）：209g/kW·h

機組重量：850kg 噪聲（LP7m）：95dB（A）

柴油機技術參數：

品牌/產地：東風康明斯（DCEC CUMMINS） 冷卻方式：封閉式水循環冷卻

油機型號：4BTA3.9-G2 供油方式：直噴

氣缸數/敢提結構：4/L型 調速方式：電子調速

缸徑行程：102×120 mm 進氣方式：渦輪增壓

壓縮比：16.5：1 過載能力：110%

啟動方式：DC24V電啟動 轉     速：1500rpm

發電機技術參數：

品牌/產地：RUIZ瑞智（標配）/江蘇 防護等級：IP22

電機型號：RZW50KW 接線方式：三相四線、Y型接法

額定功率：50kW 調節方式：AVR（自動電壓調節器）

額定電壓：400V/230V 輸出頻率：50Hz

絕緣等級：H級 輸出因數：COSΦ=0.8（滯后

發電機組標準配置如下：

Ø直噴式內燃發動機（柴油）；

Ø交流同步發電機（單軸承）；

Ø適合環境40℃－50℃散熱器水箱、皮帶驅動冷卻風扇、風扇安全護罩；

Ø發電輸出空氣開關、標配控制屏；

Ø機組鋼制共用底座（含：機組減振橡膠墊）；

Ø干式空氣過濾器，燃油過濾器，潤滑油過濾器、啟動馬達、并配有自充電發電機；

Ø啟動蓄電池及蓄電池啟動連接電纜；

Ø工業用9dB消因器及連接用標準件

Ø隨機資料：柴油機及發電機原廠技術文件、發電機組說明書、測試報告等。

自選配件（費用另計）：

Ø機油、柴油、水套、防冷凝加熱器 Ø分體式日用燃油箱、一體式底座燃油箱

Ø電瓶浮充電器 Ø防雨型機組（箱柜）

Ø自保護、自啟動機組控制屏 Ø靜音型機組（箱柜）

Ø帶“三遙”功能機組控制屏 Ø移動拖車型電站（箱柜拖車）

ØATS自動負載轉換屏 Ø靜音型移動電站（箱柜拖車）





PRELIMINARY 4BTA3.9-G2Cummins Engine Company, Inc.

Engine Data Sheet

DATA SHEET : DS-90235

ENGINE MODEL : 4BTA3.9-G2 CONFIGURATION NUMBER : D383030DX02 DATE : 19Aug04

PERFORMANCE CURVE : FR-90235

INSTALLATION DIAGRAM CPL NUMBER

 • Fan to Flywheel : 3170273  • Engine Critical Parts List : 2248

 • Heat Exchanger Cooled : N/A

GENERAL ENGINE DATA

Type ............................................................................................................................................................... 4-Cycle; In-line; 4-Cylinder Diesel

Aspiration....................................................................................................................................................... Turbocharged / Jacket Water Aftercooled

Bore x Stroke..............................................................................................................— in x in (mm x mm) 4.02 x 4.72 (102 x 120)

Displacement ..............................................................................................................................— in3



(liter) 239.3 (3.92)

Compression Ratio........................................................................................................................................ 16.5 : 1

Dry Weight

Fan to Flywheel Engine.......................................................................................................... — lb (kg) 770 (350)

Heat Exchanger Cooled Engine............................................................................................ — lb (kg) N/A

Wet Weight

Fan to Flywheel Engine.......................................................................................................... — lb (kg) 810 (370)

Heat Exchanger Cooled Engine............................................................................................ — lb (kg) N/A

Moment of Inertia of Rotating Components

 • with FW 9134 Flywheel ............................................................................................— lbm • ft

2 (kg • m2) 31.6 (1.33)

 • with FW 9017 Flywheel ........................................................................................... — lbm • ft

2 (kg • m2) 23.5 (0.99)

Center of Gravity from Rear Face of Flywheel Housing.......................................................... — in (mm) 14.7 (373)

Center of Gravity above Crankshaft Centerline........................................................................ — in (mm) 6.4 (163)

Maximum Static Loading at Rear Main Bearing.......................................................................... — lb (kg) N.A. N.A.

ENGINE MOUNTING

Maximum Bending Moment at Rear Face of Block ......................................................... — lb • ft (N • m) 1000 (1356)

EXHAUST SYSTEM

Maximum Back Pressure............................................................................................... — in Hg (mm Hg) 3 (76)

AIR INDUCTION SYSTEM

Maximum Intake Air Restriction

 • with Dirty Filter Element ......................................................................................... — in H2O (mm H2O) 25 (635)

 • with Normal Duty Air Cleaner and Clean Filter Element...................................... — in H2O (mm H2O) 10 (254)

 • with Heavy Duty Air Cleaner and Clean Filter Element ....................................... — in H2O (mm H2O) 15 (381)

COOLING SYSTEM

Coolant Capacity — Engine Only.................................................................................... — US gal (liter) 2.1 (7.9)

— with HX —— Heat Exchanger....................................................... — US gal (liter) N/A

Maximum Coolant Friction Head External to Engine — 1800 rpm................................. — psi (kPa) 5 (35)

— 1500 rpm................................. — psi (kPa) 4 (28)

Maximum Static Head of Coolant Above Engine Crank Centerline............................................. — ft (m) 46 (14)

Standard Thermostat (Modulating) Range................................................................................. — °F (°C) 180 - 203 (82 - 95)

Minimum Pressure Cap...........................................................................................................  — psi (kPa) 10 (69)

Maximum Top Tank Temperature for Standby / Prime Power ................................................. — °F (°C) 220 / 212 (104 / 100)

Minimum Raw Water Flow @ 90°F to HX —— Heat Exchanger........................ — US gpm (liter / min) N/A

Maximum Raw Water Inlet Pressure at HX —— Heat Exchanger....................................... — psi (kPa) N/A

LUBRICATION SYSTEM

Oil Pressure @ Idle Speed.................................................................................................... — psi (kPa) 30 (207)

@ Governed Speed ......................................................................................... — psi (kPa) 50 (345)

Maximum Oil Temperature.......................................................................................................... — °F (°C) 250 (121)

Oil Capacity with OP 9017 Oil Pan : High - Low ............................................................... — US gal (liter) 2.5 - 2.25 (9.5 - 8.5)

Total System Capacity (with Full Flow Filter)..................................................................... — US gal (liter) 2.88 (10.9)

Angularity of OP 9017 Oil Pan — Front Down .................................................................................... 40°

— Front Up ......................................................................................... 40°

— Side to Side.................................................................................... 40°

PRELIMINARYFUEL SYSTEM

Type Injection System...................................................................................................................................................................... Stanadyne DB4 Direct Injection

Maximum Inlet Restriction at Lift Pump............................................................................................................. — in Hg (mm Hg) 4 (102)

Maximum Allowable Head on Injector Return Line (Consisting of Friction Head and Static Head).............. — in Hg (mm Hg                      10  (254)

Total Drain Flow (Constant for All Loads) ..................................................................................................... — US gph (liter / hr) 8 (30)

ELECTRICAL SYSTEM

Cranking Motor (Heavy Duty, Positive Engagement) ....................................................................................................... — volt 12 24

Battery Charging System, Negative Ground ............................................................................................................... — ampere 63 40

Maximum Allowable Resistance of Cranking Circuit......................................................................................................... — ohm 0.00075 0.002

Minimum Recommended Battery Capacity

• Cold Soak @ 10 °F (-12 °C) and Above............................................................................................................ — 0°F CCA 625 312

COLD START CAPABILITY

Minimum Ambient Temperature for Aided (with Coolant Heater) Cold Start within 10 seconds ............................... — °F (°C) 50 (10)

Minimum Ambient Temperature for Unaided Cold Start............................................................................................... — °F (°C) 10 (-12)

PERFORMANCE DATA

All data is based on: • Engine operating with fuel system, water pump, lubricating oil pump, air cleaner and exhaust

silencer; not included are battery charging alternator, fan, and optional driven components.

• Engine operating with fuel corresponding to grade No. 2-D per ASTM D975.

• Air Intake Restriction : 254 mm H2O (10 in H2O)

• Exhaust Restriction :  51 mm Hg (2 in Hg)

• ISO 3046, Part 1, Standard Reference Conditions of:

Barometric Pressure : 100 kPa (29.53 in Hg) Air Temperature : 25 °C (77 °F)

Altitude : 110 m (361 ft) Relative Humidity : 30%

Steady State Stability Band at any Constant Load .............................................................................................................. — % +/- 0.50

Estimated Free Field Sound Pressure Level of a Typical Generator Set;

Excludes Exhaust Noise; at Rated Load and 7.5 m (24.6 ft); 1800 rpm / 1500 rpm.............................................. — dBA N.A.

Exhaust Noise at 1 m Horizontally from Centerline of Exhaust Pipe Outlet Upwards at 45° ......................................... — dBA N.A.

STANDBY PRIME POWER

60 hz 50 hz 60 hz 50 hz

Governed Engine Speed..............................................................— rpm 1800 1800

Engine Idle Speed ....................................................................... — rpm 950 - 1150 950 - 1150

Gross Engine Power Output ...........................................— BHP (kWm) 114 (84) 104 (77)

Brake Mean Effective Pressure — psi (kPa) 207 (1426) 190 (1310)

Piston Speed.................................................................— ft / min (m / s) 1416 (7.2) 1416 (7.2)

Friction Horsepower ......................................................... — HP (kWm) 16 (11.9) 16 (11.9)

Engine Water Flow at Stated Friction Head External to Engine:

• 1 psi Friction Head ..........................................— US gpm (liter / s) 45 (2.8) 45 (2.8)

• Maximum Friction Head..................................— US gpm (liter / s) 35 (2.2) 35 (2.2)

Engine Data with Dry Type Exhaust Manifold

Intake Air Flow................................................................— cfm (liter / s) 213 (100) 205 (97)

Exhaust Gas Temperature......................................................— °F (°C) 886 (475) 862 (461)

Exhaust Gas Flow ..........................................................— cfm (liter / s) 508 (240) 479 (225)

Air to Fuel Ratio .....................................................................— air : fuel 23 : 1 24 : 1

Radiated Heat to Ambient .....................................— BTU / min (kWm) 845 (14.9) 810 (14.2)

Heat Rejection to Coolant ......................................— BTU / min (kWm) 2350 (41.3) 2135 (37.5)

Heat Rejection to Exhaust .....................................— BTU / min (kWm) 3270 (57.5) 2980 (52.4)

ENGINE MODEL : 4BTA3.9-G2

DATA SHEET : DS-90235

DATE : 19Aug04



付款方式及交貨期：

網銀轉帳、電匯、現金等付款方式，15個工作日內發貨。
